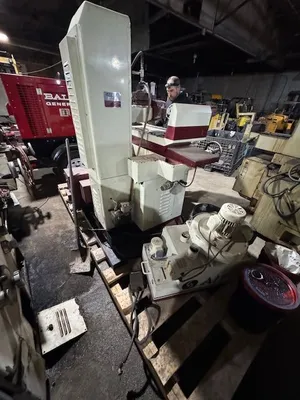

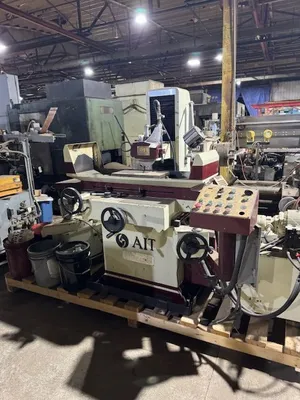

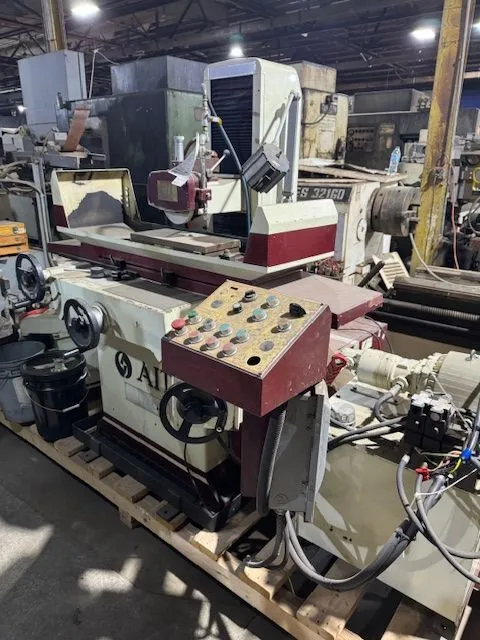

Acer 10 x 20 Hydraulic surface Grinder

Description

EQUIPPED WITH:
Perment mag 8" x 18" Chuck
Incremental Power Down Feed
Parallel Grinding Wheel Dresser

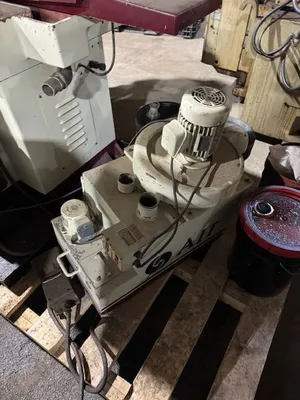

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 9″ x 20″
Grinding Width Capacity, Maximum 10″
Grinding Length Capacity, Maximum 20″
Height Spindle Center to Table, Maximum 19-1/2″
Table Load Capacity 1000 LBS
Table Longitudinal, Power 20-1/2″
Table Cross Travel 11″
Grinding Wheel Diameter, Standard 8″
Grinding Wheel Width, Standard 0.5″
Grinding Wheel Hole Diameter 1.25″
Grinding Spindle Speed 3580 RPM
Table Longitudinal Feeds, Range 16 to 80 FPM
Crossfeed Travel Feeds, Automatic 0 to 1″
Spindle Auto Downfeed , Range .0001 to .001 IPR
Spindle Horsepower 2 HP
Hydraulic Motor Horsepower 2 HP
Floor Space Required, 5’6″ x 6′
Weight, Approximately 3580 LBS
