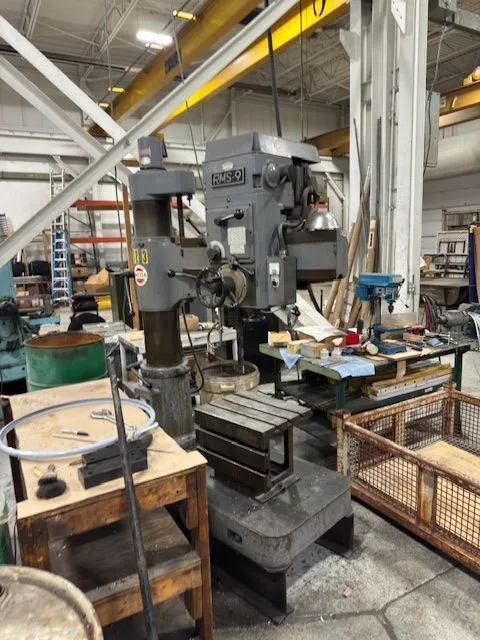

Ikeda RMS-9 Radial Drill

Description

MODEL ...... RMS-9
Arm Length 3'
Column Diameter 9"
Vertical Spindle Stroke 9"
Spindle-Nose to Base, Minimum 11.5"
Spindle-Nose to Base, Maximum 43"
Column-Face to Spindle, Minimum 11.75"
Column-Face to Spindle, Maximum 3'
Base Working Surface, W x L 23" x 37"
Base Height 6.25"
Spindle Quill Diameter 3.31"
Spindle Nose Diameter 2.25"
Spindle Taper #4 MT
(9) Spindle Speeds, Range 50 to 1500 RPM
(4) Spindle Feeds, Range .003 to .015 IPR
Motor, Horsepower 3 HP
Arm Elevating Motor 1 HP
L-Shape Table 16" x 21" T-Slotted
Tapping Capabilities
Plain Type Base
Power Arm Elevation
Coolant System (Built-In Base)
