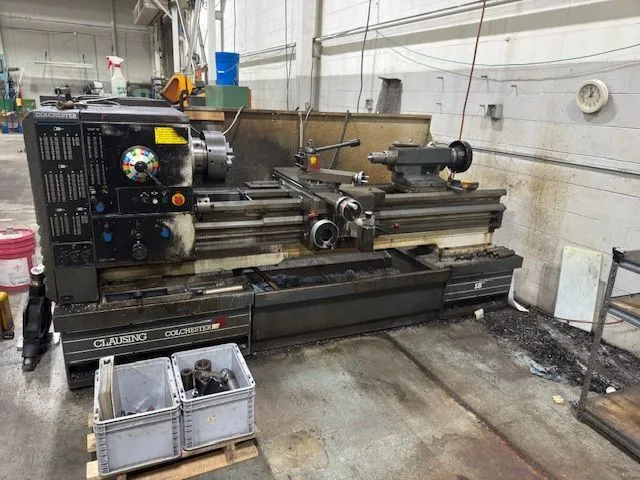

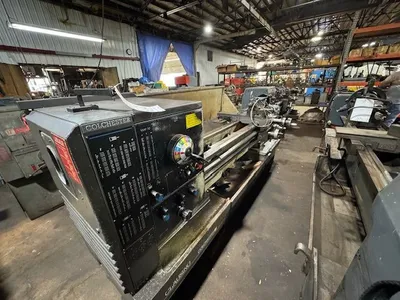

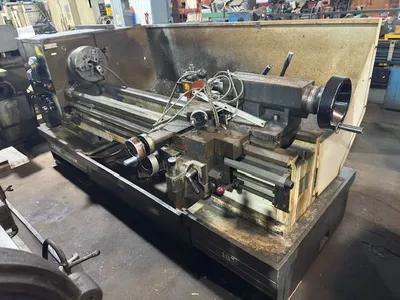

Clausing Colchester 18 x 65 Engine Lathe
Have one to sell?
ConditionUsed
1 available
Swing Over Bed: 18.1”
Swing Over Cross Slide: 10.6”
In Gap: 28.7”
Width in Front of Faceplate: 8.5”
Distance Between Centers: 80”
Top Slide Travel: 7.5”
Cross Slide Travel: 11.8”
Tailstock Travel: 5.7”
Spindle Bore Hole: 3”
Spindle Nose: D1-8” Camlock
Spindle Taper: No. 5 MT

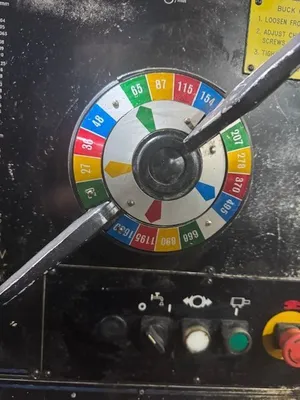

Spindle Speed: 20 – 1600 RPM (4 Ranges)
Electrics: 230 V, 3 Ph, 60 Hz (35 Amp)
Motor: 12.5 HP
Approx Overall Dimensions (l x w x h): 140” x 44” x 51”
Approx Overall Weight: 6,400 LB
Equipped With:
Metric / Imperial Threads
Coolant / Chip Pan and pump
Tailstock
Steady Rest
