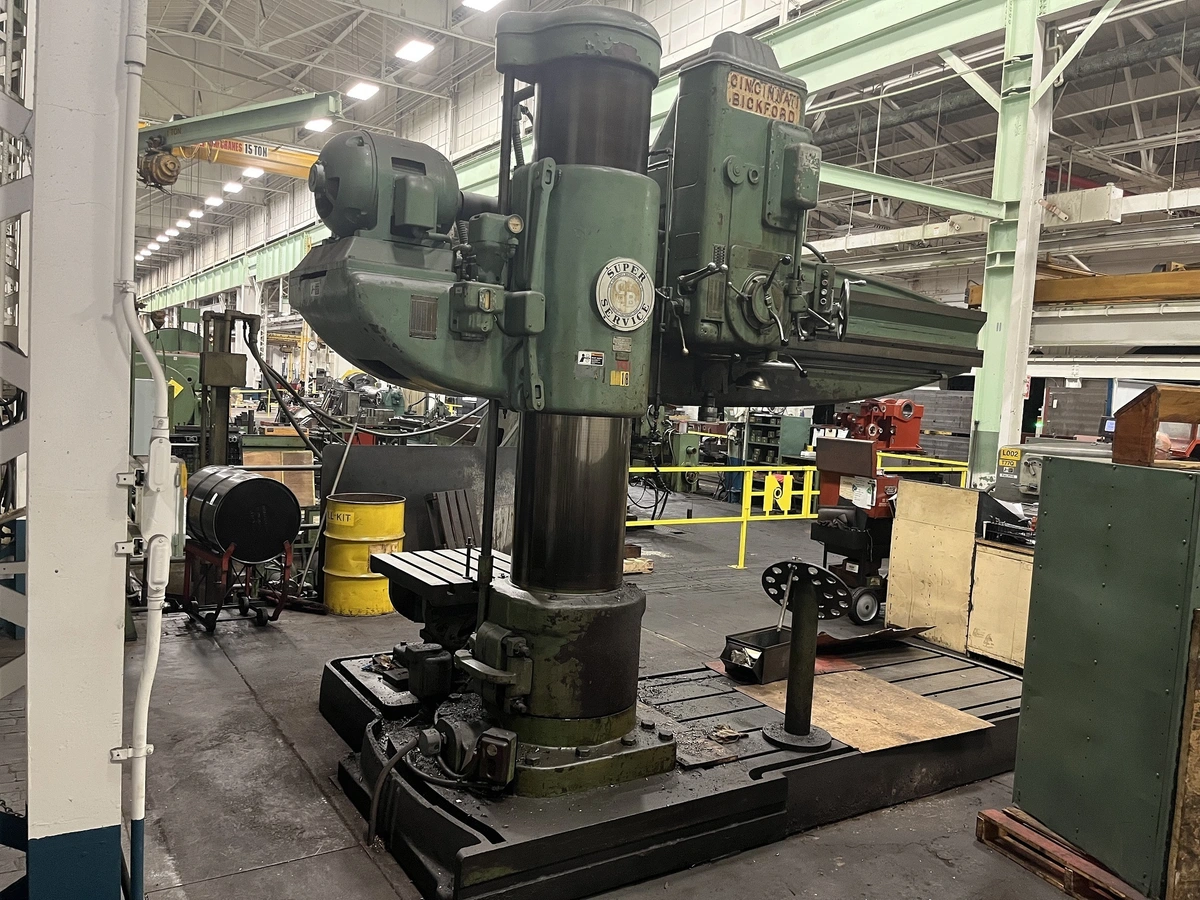

Cincinnati Bickford 8’ x 19” Super Service Radial Drill
Model: 6E Serial # 6E-860

Specifications:

Capacity: 5/8” – 4”
Arm Length: 8’
Column Diameter: 19”
Height Under Arm: 72”
Spindle Taper: No. 6 MT
Spindle Speeds: 8 – 1000 RPM
Spindle Feeds: .0240 - .125 IPM
Spindle Tapp Leads: 8, 11 ½, 14, 18, 20, 27
Main Motor: 20 hp., 220/440V., 3/60
Machine Dimensions: 8’W x 12’ L x 11’ Tall
“T” Slotted Base Working Surface: 56”Wide X 8’ Long X 12” Thick
6E Heavy Duty Head
Power Clamping To Head & Arm
Power Raising & Lowering Of Arm
Power Rapid Traverse To Head Both Directions

Equipped with:
Universal “T” Slotted Box Table
Right Angle Base ( Removable )
Tapping Reverse
In Base Coolant System ( Gusher Pump )
Electrics Attached To Machine
