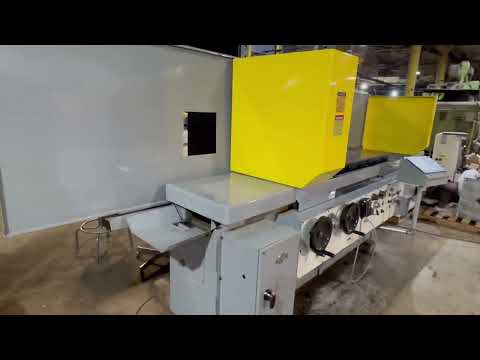

OKAMOTO 20" x 48" Surface Grinder ACC2048-DX

Description

OKAMOTO ACC2048-DX HYDRAULIC PRECISION SURFACE GRINDER
1997 ?

Machine Specifications
Model: 2048DX
Serial #
Capacity : Maximum Longitudinal Travel 57.0 inch
Maximum Cross Travel 22.0 inch
Maximum Distance under 20” Wheel to Table Surface 23.5 inch
Magnetic Chuck Size (WxL) 20 x 47 inch
Table Load Capacity (Includes Chuck Weight) 1,950 lbs
Table: T-Slots (No. x Width) 3 x 0.8 inch
Hydraulic Feed Rate 6.0 - 82 ft/min.
Hand Feed per Revolution 1.0 inch
Crossfeed: Hydraulic Intermittent Crossfeed 0.2 - 1.4 inch
Hydraulic Continuous Crossfeed Rate 1 - 16 inch/min.
Crossfeed Per Revolution 0.2 inch Handfeed
Dial Graduation 0.001 inch
Wheelhead: Automatic Vertical Feed per Table Stroke 0.00005 - 0.00295 inch
Rapid Feed Rate 1.2 ft/min.
Manual Pulse Feed (x.1) 0.00005, (x10) 0.0005
Grinding Wheel : Size (DxWxB) 20 x 3 x 8 inch (20 x 3 x 5 optional)
Speed 1,100 rpm/60HzZ Motors:
Grinding Wheel Spindle 20 hp Hydraulic
Pump 5 hp
Vertical Rapid Feed & Downfeed 1.0 hp (AC Servo) Power Supply:
25 KVA Desired Power Supply including Electro-Magnetic Chuck & Coolant System
Floor Space (LxWxH): 213 x 100 x 86 inch
Net Weight: 22,500 lbs approx.

Equipped With:
Hydraulic Profile Wheel guard Dresser
20 Horsepower Spindle Motor ( 15 Hp. Is Standard )
Auto-Cycle Including Incremental Down Feed
20” X 48” Electro-Magnetic Chuck With Control System

Hand Controls
Manual Pulse Generator
Grinding Wheel Mount With Wheel guard
Coolant system With drag out sludge conveyor
Inspect Under Power on Our Warehouse Floor with 48 Hour Notification

Note: Purchased From Original Owner..
