Used EUROMAC 220/6S | Notching Machines

Description

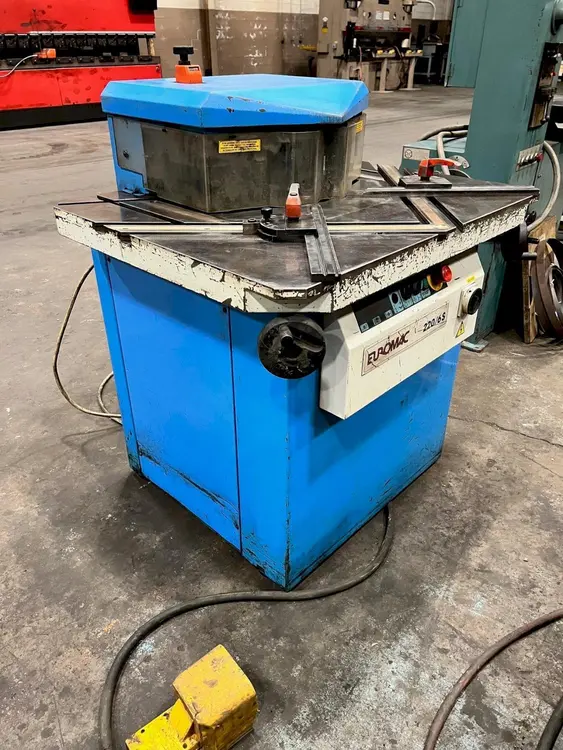

EUROMAC VARIABLE ANGLE 8" x 8" x 1/4" HYDRAULIC SHEET METAL NOTCHER
Model: 200/6S

Specifications:
Variable angle: 30 to 140 deg
Blade length: 8.6”
Cutting capacity in mild steel
60 blades (negative blades): 0.253
30 blades (positive blades): 0.136
Cutting capacity in stainless steel
60 blades: 0.196”
30 blades: 0.118”
Strokes/minute at 8.6” cutting length: 50
Work surface area: 39.0” x 31.2”
Table height: 36.75”
Overall machine dimensions: 40.2” x 33.5” x 48.8”
Approximate weight: 2,006 lbs.
Motor: 5.5 HP
Electrics: 3 phase (220 or 440 volt) currently 220 volt
Oil tank reservoir: 16 gallons

Features and Benefits

Hydraulically powered

 Ability to jog cutting head

 Ability to reverse cutting head at any point in stroke

Monoblock construction

 Meehanite steel casting provides absolute rigidity

Variable angle capability
Allows operator to change angle of cut from 30 to 140 in seconds

Automatic blade gap adjustment

 Eliminates need for time consuming blade clearance settings

 Prevents material roll over and jamming

 Ensures a burr-free, high quality cut regardless of material thickness

Hydraulic clamping

Sheet holding clamps

 Eliminates any torque-related movement during cutting

Two protractors with heavy steel handles and pin-locking pre-set 15 intervals

 Enables quick set-up of angles other than 90

Engraved brass measuring scales

 Precise, heavy-duty scales will still be readable after years of constant use

Vertical stroke adjustment

 Enables stroke travel of blades to be shortened to increase productivity
